Remove/install rear bumper - AR88.20-P-2200GZ
MODEL 164
Shown on model 164.1
Shown on model 164.1
| Remove/install | |||
|---|---|---|---|

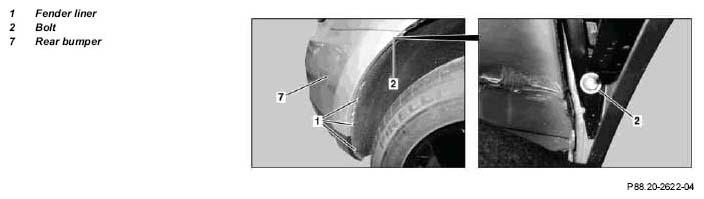

| 1 | Loosen fender liner (1) in area of rear bumper (7) | ||
| 2 | Unscrew bolt (2) on both sides. | ||
| 3 | Open rear-end door | ||

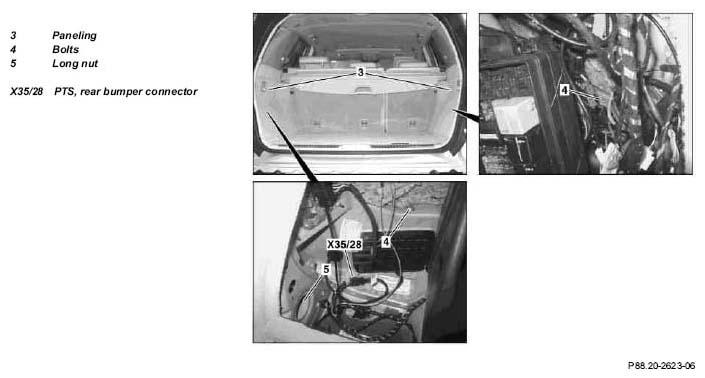

| 4 | Open side paneling (3) in load compartment and remove | ||
| 5 | Remove screws (4) | ||
| 6 | Unscrew long nut (5) on left and right in rear crossmember. | ||
| 7.1 | Disconnect PTS connector, rear bumper (X35/28) | ||

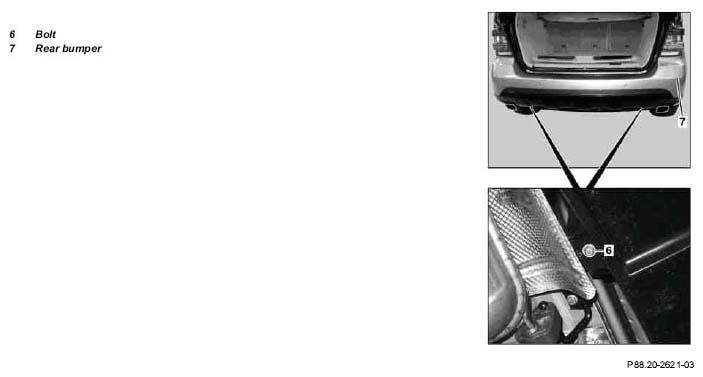

| 8 | Unscrew bolt (6) at bottom on rear bumper (7) | ||
| 9 | Remove rear bumper (7) toward rear. | ||
| *BE60.00-P-1002-01P *BE60.00-P-1005-01P *BE60.00-P-1006-01P |
|||
| Figure | |||
| 10 | Install in the reverse order |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 164.1 | Model 164.8 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1002-01P | Gap dimension | Rear bumper to fender | Dimension "C1" | mm | - | 0.0 (±0.5) |
| Front door to rear door | Dimension "D" | mm | 5 (±0.5) | 5.0 (±1.0) | ||
| Rear-end door to D-pillar | Dimension "D1" | mm | 5 (±1) | 5.0 (±1.0) | ||
| Front door to rear door in area of B-pillar | Dimension "E" | mm | 5 (±0.5) | 5.0 (±1.0) | ||
| Door sill molding to rear door | Dimension "F" | mm | 6 (±1) | 6.0 (±1.0) | ||
| See picture | AR60.00-P-0700-01GZ | AR60.00-P-0700-01GZ | ||||
| BE60.00-P-1005-01P | Gap dimension | Front bumper to fender | Dimension "Q" | mm | - | 0.0 (±1.0) |
| Taillamp to rear-end door | Dimension "R" | mm | 5 (±0.5) | 5.0 (±1.0) | ||
| Bumper to taillamp | Dimension "S" | mm | 3 (±0.5) | 3.0 (±1.0) | ||
| Taillamp to upper D-pillar | Dimension "T" | mm | 3 (±0.5) | 3.0 (±1.0) | ||
| Taillamp to lower D-pillar | Dimension "T1" | mm | 5 (±0.5) | 3.0 (±1.0) | ||
| See picture | AR60.00-P-0700-01GZ | AR60.00-P-0700-01GZ | ||||
| BE60.00-P-1006-01P | Gap dimension | Rear-end door to D-pillar | Dimension "D1" | mm | - | 5.0 (±1.0) |
| for glass | Dimension "U" | mm | 5 (±1) | 5.0 (±1.0) | ||
| Rear-end door to bumper | Dimension "V" | mm | 8 (±1.5) | 8.0 (± 1.5) | ||
| Antenna cover | ||||||
| on roof | Dimension "W" | mm | 5 (±2) | 6.0 (±2.5) | ||
| On rear-end door | Dimension "W" | mm | 8 (±0.5) | 6.0 (±1.0) | ||
| See picture | AR60.00-P-0700-01GZ | AR60.00-P-0700-01GZ | ||||
