Removing, installing auxiliary battery - AR54.10-P-0007GZ
MODEL 164
| Remove/install | |||
|---|---|---|---|
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into eyes suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | All models | AH54.10-P-0001-01A | |
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| 1 | Remove battery | AR54.10-P-0005GZ | |
| *BA54.10-P-1012-01C | |||
| *BA54.10-P-1024-01C | |||

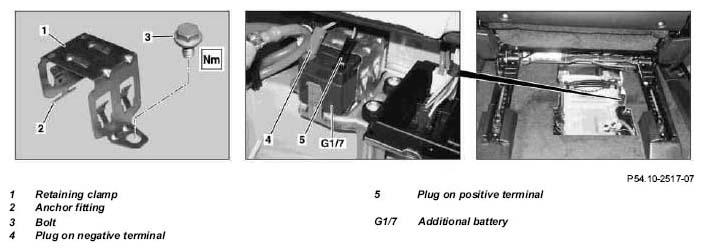

| 2 | Detach plug on negative terminal (4) of additional battery (G1/7) | ||
| 3 | Detach plug on positive terminal (5) of additional battery (G1/7) | ||
| 4 | Undo bolt (3), open retaining clamp (1) | ||
| *BA54.10-P-1025-01C | |||
| 5 | Remove additional battery (G1/7) | ||
| 6 | Install in the reverse order | ||
| 7 | Perform basic programming | AR00.19-P-0200GZ |
BATTERY
| Number | Designation | Model 164.1/8 | ||
|---|---|---|---|---|
| BA54.10-P-1012-01C | Nut, battery cable to battery terminal | M6 | Nm | 6 |
| BA54.10-P-1024-01C | Nut, battery retaining plate to frame floor | M8 | Nm | 24 |
| BA54.10-P-1025-01C | Bolt, additional battery retaining clamp | M6 | Nm | 5 |
