Remove/install housing for fuse and relay box - AR54.15-P-1259GZ

MODEL 164 with Engine 113

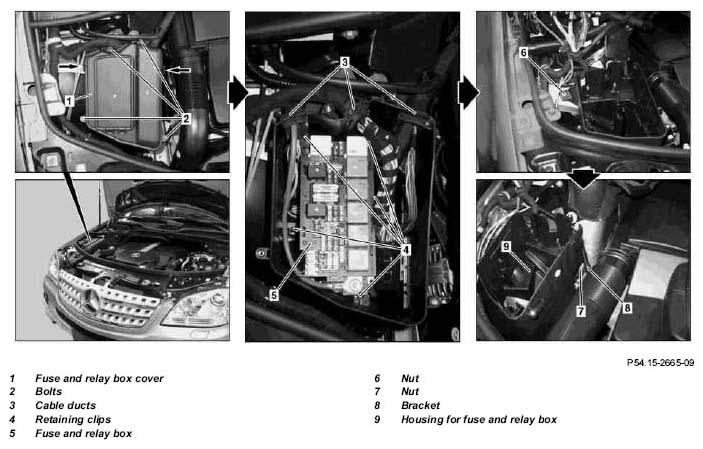

Fig 1: Identifying Housing For Fuse And Relay Box Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

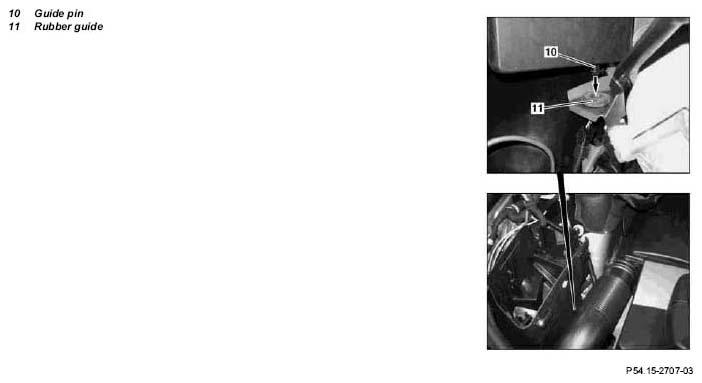

Fig 2: Identifying Housing For Fuse And Relay Box Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/instal
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of from  battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into injury caused by burns to skin and eyes suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect battery ground cable		AR54.10-P-0003GZ
2	Remove bolts (2) and remove the cover of the fuse and relay box (1)	To unlock, press the two catch lugs (arrows).
3	Remove cable glands (3) out of housing for fuse and relay box (9)
4	Detach fuse and relay box (5)	To unlock, press the five retaining clamps (4).
5	Pull fuse and relay box (5) out of housing for fuse and relay box (9)	Carefully place fuse and relay box (5) to one side.
6	Unscrew nut (6, 7)
7	Remove housing for fuse and relay box (9)	Detach bracket (8) from threaded stud. Installation:  Ensure that the rubber guide (11) is installed properly. The pilot stud (10) of the fuse and relay box (5) must be inserted in the rubber guide (11) when installing.
8	Install in the reverse order
9	Perform basic programming		AR00.19-P-0200GZ
