Remove/install front SAM control unit - AR54.21-P-1254GZ
MODEL 164
| Remove/instal | |||
|---|---|---|---|
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | All models | AH54.10-P-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | All models | AH54.00-P-0001-01A | |
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| 1.1 | Read out coding of front SAM control unit (N10) using STAR DIAGNOSIS | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A | ||
| 2 | Remove battery | AR54.10-P-0005GZ | |
| *BA54.10-P-1012-01C | |||
| *BA54.10-P-1024-01C | |||

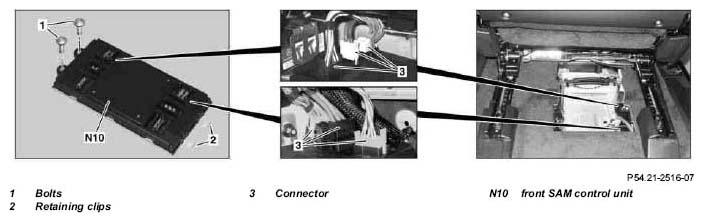

| 3 | Unlock all plugs (3) and disconnect from front SAM control unit (N10) | ||
| 4 | Undo bolts (1), remove front SAM control unit (N10) | ||
| 5 | Install in the reverse order | ||
| 6.1 | Code front SAM control unit (N10) | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A | ||
| 7 | Perform basic programming | AR00.19-P-0200GZ |
BATTERY
| Number | Designation | Model 164.1/8 | ||
|---|---|---|---|---|
| BA54.10-P-1012-01C | Nut, battery cable to battery terminal | M6 | Nm | 6 |
| BA54.10-P-1024-01C | Nut, battery retaining plate to frame floor | M8 | Nm | 24 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
