Sensors, component description - GF54.65-P-5010GZ

MODEL 164.1 /8 with CODE (220) Parktronic system (PTS)

Shown on model designation 164.1

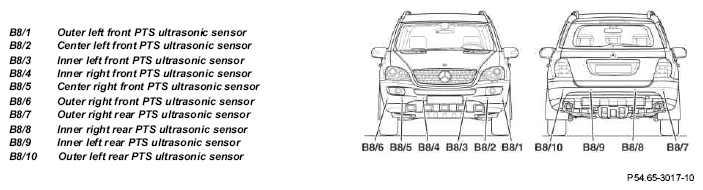

Fig 1: Identifying Parktronic System Sensors (PTS) - Shown On Model Designation 164.1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Task

The sensors in the bumpers are transmitters and receivers for the ultrasonic signals necessary for measuring the distance to an obstacle.

Function

When actuated by the PTS control unit (N62), the sensors emit an ultrasonic signal. After a short decay time the sensors are ready to receive. Each sensor receives the echo of its own signal and that of the other sensors. The distance to the obstacle is calculated from the elapsed time between transmission and reception.
