Fuse and relay box, as-built configuration - GF54.15-P-0800GZ
MODEL 164
Shown on model 164.1 before production period 31.05.2006

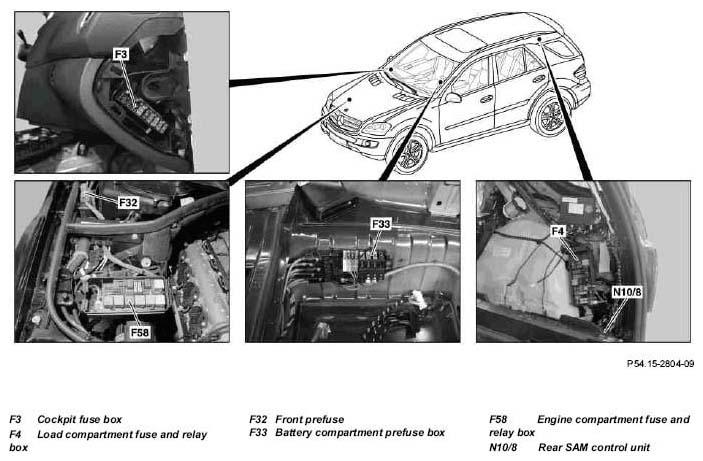

Fig 1: Identifying Fuse And Relay Box Components - Shown On Model 164.1 Before Production Period 31.05.2006
Shown on model designation 164.1 as of production period 01.06.2006

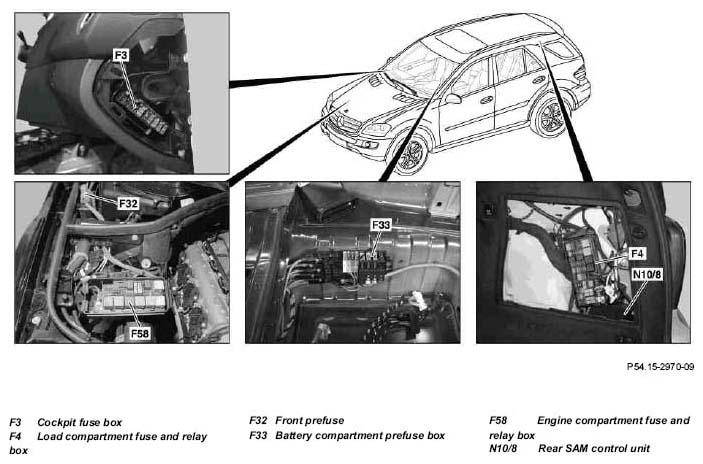

Fig 2: Identifying Fuse And Relay Box Components - Shown On Model Designation 164.1 As Of Production Period 01.06.2006
| Fuse assignment of fuse and relay box in right engine compartment | GF54.15-P-1256-02GZ |
| Fuse assignment of front prefuse box | GF54.15-P-1256-07GZ |
| Fuse assignment of load compartment fuse and relay box | GF54.15-P-1256-14GZ |
| Fuse assignment of battery compartment prefuse box | GF54.15-P-1256-15GZ |
| Fuse assignment of fuse box in cockpit | GF54.15-P-1256-16GZ |
| Relay assignment of fuse and relay box in right engine compartment | GF54.15-P-1257-02GZ |
| Relay assignment of the load compartment fuse and relay box | GF54.15-P-1257-08GZ |
