Removing and installing Parktronic system (PTS) warning display in instrument panel - AR54.65-P-0003GZ

MODEL 164 with CODE (220) Parktronic system (PTS)

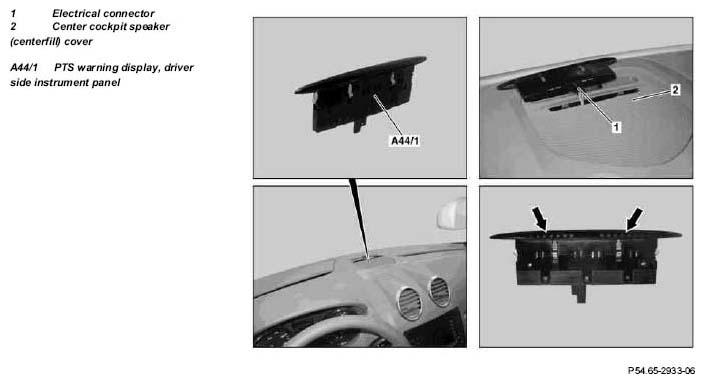

Fig 1: Identifying Parktronic System (PTS) Warning Display In Instrument Panel Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/instal
	Information on preventing damage to electronic components due to electrostatic discharge	All models	AH54.00-P-0001-01A
1	Switch off ignition and remove the transmitter key from the EIS [EZS] control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2	Carefully lever driver-side instrument panel PTS warning indicator (A44/1) upwards out of center cockpit speaker (centerfill) cover (2)	Protect the instrument panel from scratches. Installation:  Install the driver-side instrument panel PTS warning indicator (A44/1) such that the LED indicators (arrows) face the interior.
		Long wedge	Figure
3	Disconnect electrical connector (1)
4	Install in the reverse order
