Remove/install on-board electrical network line pyrofuse in vehicle power supply control unit - AR54.15-P-1262GZ
MODEL 164.828

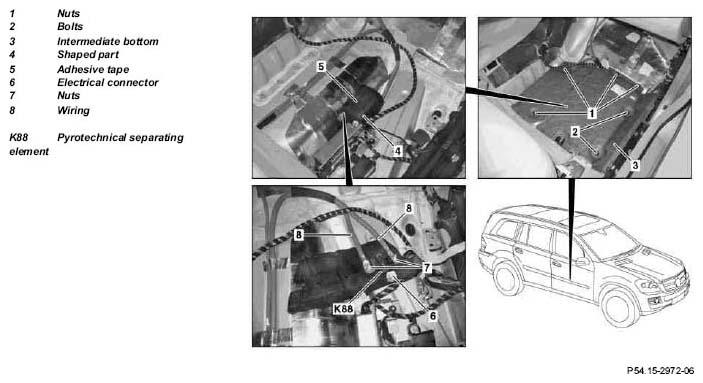

Fig 1: Identifying On-Board Electrical Network Line Pyrofuse In Vehicle Power Supply Control Unit Remove/Install Components
| Remove/instal | |||
|---|---|---|---|
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable eyes and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| 1 | Disconnect battery ground cable | AR54.10-P-0003GZ | |
| 2 | Remove front floor covering | AR68.20-P-2070GZ | |
| 3 | Unscrew nuts (1). | ||
| 4 | Unscrew bolt (2) | ||
| 5 | Remove intermediate bottom (3) | ||
| 6 | Remove molded part (4) | ||
| 7 | Detach adhesive tape (5) | ||
| 8 | Disconnect electrical connector (6) | ||
| 9 | Unscrew nuts (7). | *BA54.15-P-1002-01D | |
| 10 | Remove lines (8) | ||
| 11 | Remove pyrotechnical separating element (K88) | ||
| 12 | Install in the reverse order |
FUSE BOX
| Number | Designation | Model 164.828 | |
|---|---|---|---|
| BA54.15-P-1002-01D | Nut, pyrofuse to vehicle power supply control unit | Nm | 18 |
