| 1 |
Open tailgate |
 Model 164.1:
The load compartment socket (X58/4) is located in the side trim (1) on the right of
the load compartment.
Model 164.8:
The load compartment socket (X58/4) is located in the side trim (1) on the left of
the load compartment. |
|
| 2 |
Fold up housing lid (2) |
|
|
| 3 |

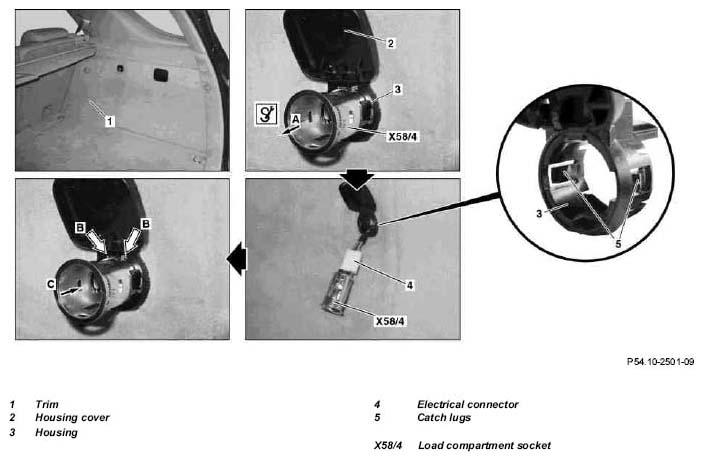

Use pliers to release load compartment socket (X58/4) from housing (3) and to pull it out (arrow A) |
Do not turn the load compartment socket (X58/4) when pulling out
Installation:
Ensure that the two guides (arrows B) are inserted in the grooves of the housing (3). Insert the load compartment socket (X58/4) until it latches in the housing (arrow C). |
|
| |
|
Pliers |
Fig 2 |
| 4 |
Disconnect electrical connector (4) |
|
|
| 5 |
Remove housing (3) from trim (1) at the side of the load compartment |
Loosen the housing (3) at the two catch tabs (5) and pull out of the side trim in the load compartment. |
|
| 6 |
Install in the reverse order |
|
|
