Removing and installing parking brake indicator switch - AR42.20-P-0501GZ

MODEL 164

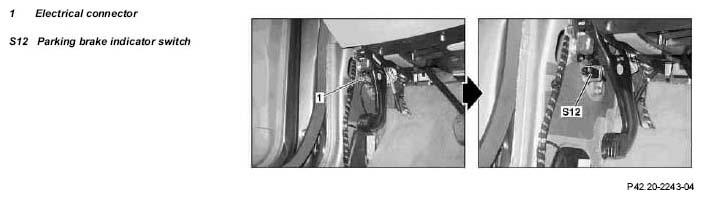

Fig 1: Identifying Electrical Connector And Parking Brake Indicator Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove paneling in footwell		AR68.30-P-4010GZ
2	Disconnect electrical connector (1)
3	Press parking brake indicator switch (S12) on both sides and remove	Installation:  The parking brake indicator switch (S12) must latch audibly.
4	Install in the reverse order
