Replace brake fluid - AP42.00-P-4280GZ

MODEL 164.1 /8

Shown on model 164.1

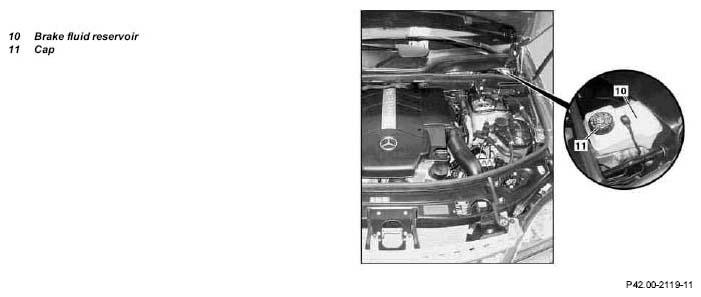

Fig 1: Identifying Brake Fluid Reservoir And Cap

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Figure item, etc.	Work instructions
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes.	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
1	Open engine hood and raise to vertical position
	Opening engine hood, moving to upright position and closing		AR88.40-P-1000GZ
2	Unscrew cap (11) from brake fluid reservoir (10)
3	Pump brake fluid out of the brake fluid reservoir (10)
4	Pour in new brake fluid up to the "MAX" mark on the brake fluid reservoir (10)	Brake fluid	*BF42.10-P-1001-01G
5	Connect brake fluid changing unit to brake fluid reservoir (10)	Follow the operating instructions for the brake fluid changing unit. Brake fluid changing equipment, see GOTIS http://gotis.aftersales.daimlerchrysler.com
6	Raise vehicle with lifting platform
	Lift/jack up vehicle		AR00.60-P-1000GZ
	Replace
7	Replace brake fluid	The new brake fluid must escape via the bleed hose free of bubbles.
	Bleed brake system		AR42.10-P-0010GZ
		Front axle:
		Bleed screw to brake caliper	*BA42.10-P-1001-10L
		Rear axle
		Bleed screw to brake caliper	*BA42.10-P-1001-10L
8	Lower vehicle
	Lift/jack up vehicle		AR00.60-P-1000GZ
9	Detach brake fluid changing unit from brake fluid reservoir (10)	Brake fluid changing equipment, see GOTIS http://gotis.aftersales.daimlerchrysler.com
10	Correct fluid level in brake fluid reservoir (10)	Brake fluid	*BF42.10-P-1001-01G
11	Screw cap (11) onto brake fluid reservoir (10)
12	Close engine hood
	Opening engine hood, moving to upright position and closing		AR88.40-P-1000GZ

FRONT AXLE BRAKE CALIPER

Number	Designation		Model 164 except 164.177	Model 164.177
BA42.10-P-1001-10L	Bleed screw to brake caliper	Nm	18	18

REAR AXLE BRAKE CALIPER

Number	Designation		Model 164
BA42.10-P-1001-12L	Bleed screw to brake caliper	Nm	7

BRAKE FLUID

Number	Designation			Model 164.1/8
BF42.10-P-1001-01G	Brake fluid	Filling capacity	Liters	≈ 0, 8
		Specifications for Operating Fluids	Sheet
				BB00.40-P-0330-01A
			Sheet
				BB00.40-P-0331-00A
