Brake system - inspect fluid level - AP42.10-P-4210GZ

MODEL 164

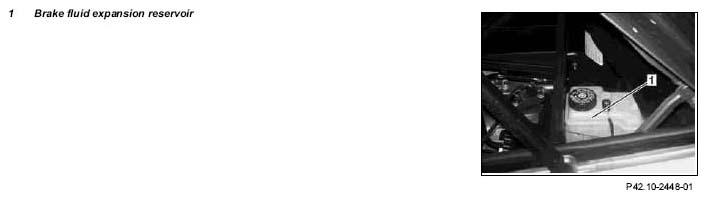

Fig 1: Identifying Brake Fluid Expansion Reservoir

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Checking
	Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
1	Open engine hood and raise to vertical position
	Opening engine hood, moving to upright position and closing		AR88.40-P-1000GZ
2	Check fluid level in expansion reservoir (1)	The fluid level must lie between the "MIN" and "MAX" markings stamped in the expansion reservoir (1). If the fluid level is too low, determine and rectify the cause subject to a separate repair order ↓
		Checking brake lining thickness.	AP42.10-P-4253A
		Check brake system for leaks.	AR42.10-P-0100-01GZ
		Brake fluid	*BF42.10-P-1001-01G
3	Close engine hood
	Opening engine hood, moving to upright position and closing		AR88.40-P-1000GZ

BRAKE FLUID

Number	Designation			Model 164.1/8
BF42.10-P-1001-01G	Brake fluid	Filling capacity	Liters	≈ 0, 8
		Specifications for Operating Fluids	Sheet
				BB00.40-P-0330-01A
			Sheet
				BB00.40-P-0331-00A
