Retrofit CD changer - AN82.64-P-0001GZ
MODEL 164
Shown on model 164.1
| Remove | |||
|---|---|---|---|
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | All models | AH54.00-P-0001-01A | |
| 1 | Remove radio | ||
| Remove/install radio | AR82.60-P-7502GZ | ||

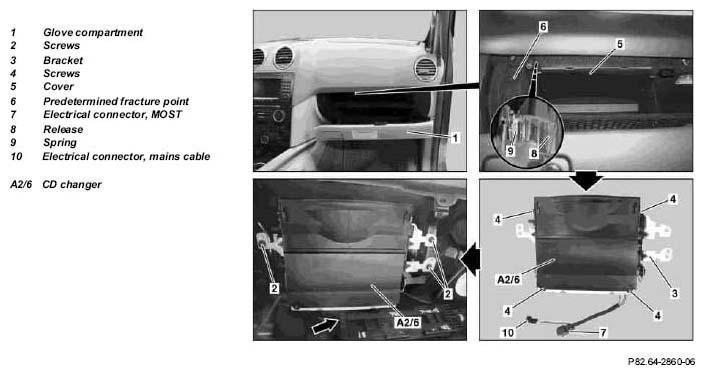

| 2 | Remove glove compartment (1) | ||
| Remove/install glove compartment | AR68.10-P-1400GZ | ||
| 3 | Remove paneling in right footwell | ||
| Remove/install paneling in footwell | AR68.30-P-4010GZ | ||
| 4 | Unclip and dispose of cover (5) | Fig 3 | |
| 5 | Expose predetermined fracture point (6) for CD changer release button | ||
| Install | |||
| 6 | Retrofit MOST fiber optical cable wiring harness | AN82.61-P-0001-06GZ | |
| Wiring diagram of MOST bus | PE82.00-P-2710MAA | ||
| 7 | Fasten CD changer (A2/64) to bracket (3) with screws (4) | ||
| 8 | Fasten bracket (3) and CD changer (A2/6) to instrument panel support with screws (2) | ||
| 9 | Insert electrical connector, MOST (7) and electrical connector, mains cable (10) from CD changer into instrument panel wiring harness (arrow) | ||
| 10 | Attach release mechanism (8) to glove compartment | ||
| 11 | Install paneling in right footwell | ||
| Remove/install paneling in footwell | AR68.30-P-4010GZ | ||
| 12 | Install glove compartment (1) | ||
| Remove/install glove compartment | AR68.10-P-1400GZ | ||
| 13 | Install radio | ||
| Remove/install radio | AR82.60-P-7502GZ | ||
| 14 | Check MOST bus configuration with STAR DIAGNOSIS | STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| KG99 (see EPC) | CD changer | 1 |
