Detach/attach torque converter on driver - AR27.20-P-0100-01GZ

MODIFICATION NOTES

13.1.06

Bolt, torque converter to drive plate

Transmission 722.9

TORQUE CONVERTER

Number	Designation				Transmission 722.9
BA27.20-P-1002-01C	Bolt, torque converter to drive plate	Straight threaded connection		Nm	42
		Angled threaded connection	Stage 1	Nm	4
			Stage 2	Nm	30
			Stage 3	∠°	90

Fig 1: Identifying Wrench Socket (001 589 65 09 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Remove cover (1) on crankcase.
Installation: Pay attention to correct seat of cover (1).
Turn engine by respectively approx. 120° at the crankshaft center bolt using socket in the direction of engine rotation and unscrew the torque converter bolts.
The torque converter is attached to the drive plate with six bolts.

Installation: Before installing the transmission, align the tapped holes of the torque converter and holes in the drive plate.
Install in the reverse order.

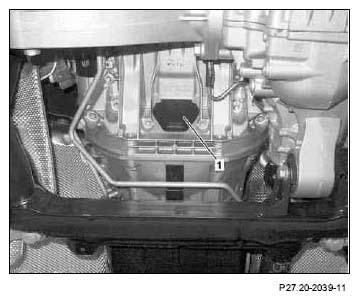

Fig 2: Identifying Cover On Crankcase
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
