Secure vehicle on lifting platform - AR00.60-P-0100GZ
MODEL 164
Shown on model 164.8
| Mount/dismantle | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| The lifting platform safety devices (1) must always be mounted in pairs (i.e. at two positions) to the longitudinal members of the vehicle. The lifting platform safety devices (1) can be mounted both at the front or both at the rear; they must not be mounted on one side of the vehicle or diagonally on it | |||
| 1 | Remove covers of lifting platform supports | ||

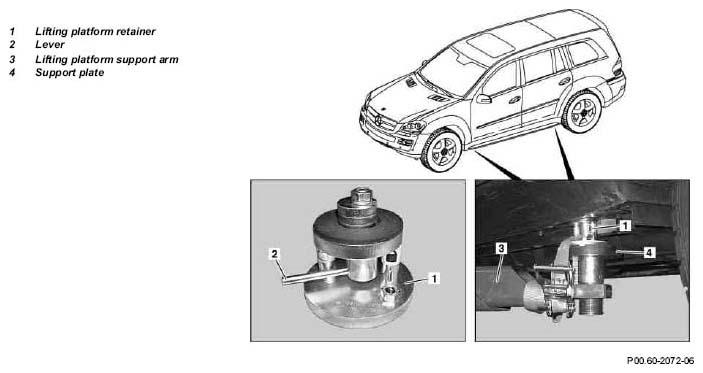

| 2 | Insert lifting platform safety devices (1) into longitudinal members | Fig 2 | |
| 3 | Swivel lever (2) of lifting platform safety devices (1) to the right until lever (2) is secured | ||
| 4 | Rotate support plate (4) on lifting platform support arm (3) until the support plate contacts the lifting platform safety devices (1) or the lifting platform support of the longitudinal member | ||
| 5 | Raise vehicle with lifting platform | Two-post lift | *WE58.40-Z-1001-05A |
| 6 | Tie down lifting platform safety devices (1) on lifting platform support arm (3) using tensioning straps | ||
| 7 | Dismantle in reverse order. |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-05A | Two-post lifting platform |
