Remove/install hydraulic line of power steering (high-pressure line) AR46.25-P-3015RT
| Remove/install | |||
|---|---|---|---|
| Danger! | Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A |
| Danger! | Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
| Danger! | Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid | Depressurize hydraulic system completely before starting any work on system. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A |
| 2 | Remove engine trim panel | ||
| 3 | Extract oil from expansion reservoir of power steering pump | *210589007100 | |
| 4 | Remove left intake air duct | ||

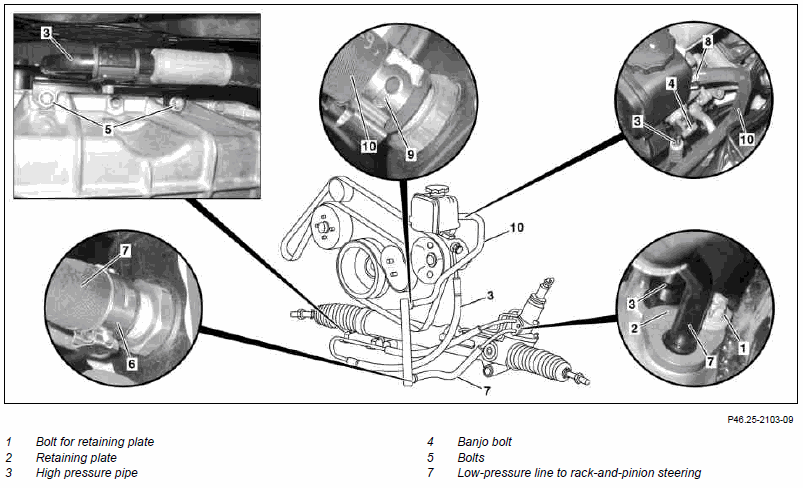

| 5 | Remove bolt for retaining plate (1) | *BA46.20-P-1001-01K | |
| 6 | Remove retaining plate (2) | ||
| 7 | Loosen bolts (5) on bracket of high pressure hose to engine oil pan | *BA46.30-P-1002-01H | |
| 8 | Remove front section of fender liner in right front fender | Only on model 164 with engine 629 To allow loosening of banjo bolt (4). |
|
| 9 | Detach high-pressure line (3) from power steering pump. | BA46.30-P-1008-01H | |
| 10 | Remove high pressure line (3) | Installation: Install new sealing rings on high pressure line (3) and low-pressure line to rack-and-pinion steering (7) | |
| 11 | Install in the reverse order | ||
| 12 | Fill power steering pump and bleed | Model 164 | AR46.30-P-0010GZ |
| 13 | Check the steering system for leaks when the engine is running. |
POWER STEERING PUMP TIGHTENING TORQUE
| Number | Designation | Engine 273 in 164 |
|---|---|---|
| BA46.30-P-1002-01H | Bolt, power steering pressure line bracket to engine oil pan | 10 Nm |
| BA46.30-P-1008-01H | Banjo bolt, power steering pressure line to power steering pump | 45 Nm |
STEERING GEAR TIGHTENING TORQUE
| Number | Designation | Model 164 |
|---|---|---|
| BA46.20-P-1001-01K | Bolt, retaining plate for oil line to control head | 18 Nm |
