Remove and install control and operating unit - AR83.40-P-6350GZ

MODEL 164

Shown on model 164.1 with offroad package, code 430

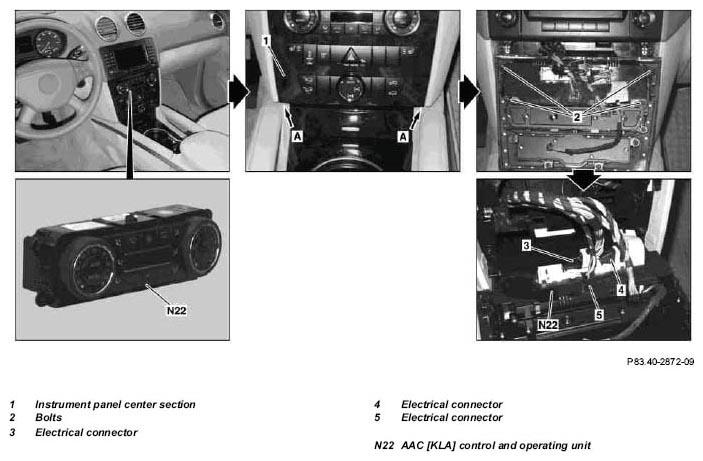

Fig 1: Identifying Control And Operating Unit Components - Shown On Model 164.1 With Offroad Package, Code 430

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

26.7.06

Disconnect/connect ground line for battery and carry out basic programming removed

Steps 1 and 7

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Unlatch the instrument panel-center part (1) at the bottom edge (arrows A) and pull forward out of the instrument panel	Protect trim parts of the instrument panel and center console from scratches.
2	Remove bolts (2)
3	Separate electrical connector (3, 4, 5)
4	Remove AAC [KLA] control and operating unit (N22)
5	Install in the reverse order
