Routing diagram of poly V-belt - AR13.22-P-3902-02PI

  1. Install poly-V belt according to running diagram.

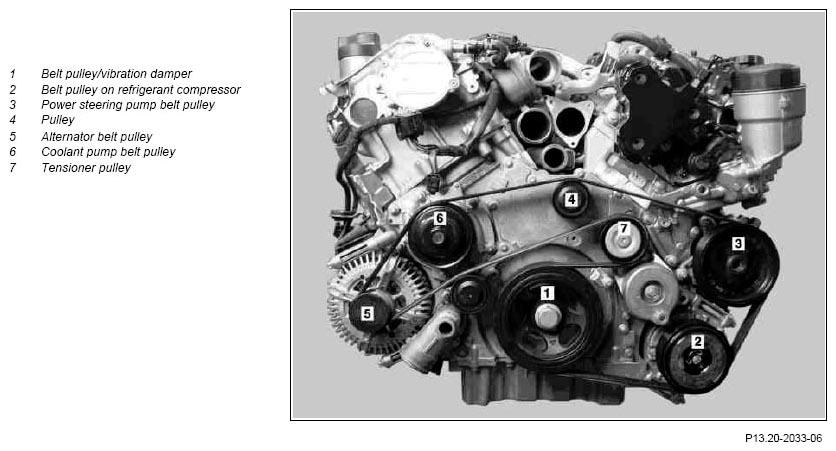

    Fig 1: Routing Diagram Of Poly V-Belt
    G07008316Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
