Remove/install radiator identification sensor - AR07.04-P-5004GZH (ML350)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272

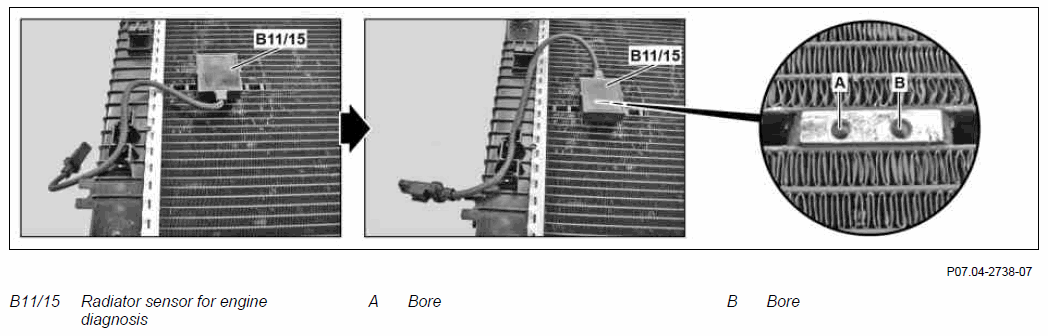

Fig 1: Removing/Installing Radiator Identification Sensor

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Picture item, etc.	Work instructions
	Only perform work on a removed radiator	Checking the connection and for a damage-free removal is only possible on a removed radiator.
	The radiator sensor for engine diagnosis (B11/15) may only be replaced once per radiator. Repeated or a second replacement is not permissible.	Replace radiator if the radiator sensor for engine diagnosis (B11/15) has already been replaced in the past.
	In document the designation "radiator identification sensor" always refers to the component "radiator sensor for engine diagnosis".
B11/15	Radiator sensor for engine diagnosis	The lug on the rear side breaks during removal and remains in bore (A) Observe installation position of new part. Glue lug into bore (B).
	Thread locking adhesive, Loctite 4204		*BR00.45-Z-1146-02A
A	Bore
B	Bore

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1146-02A	Thread locking adhesive, Loctite 4204	A 009 986 09 71
