Remove/install injection system control unit - AR07.08-P-7008GZ (ML500)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.964 in MODEL 164.175
| Remove/install | |||
|---|---|---|---|
| Notes on avoiding damage to electronic components due to electrostatic discharge | All models | AH54.00-P-0001-01A | |
| 1.1 | Read out coding of ME-SFI [ME] control unit (N3/10) | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnostic system | *WH58.30-Z-1048-13A | ||
| 2 | Remove right front floor covering | AR68.20-P-2070GZ | |

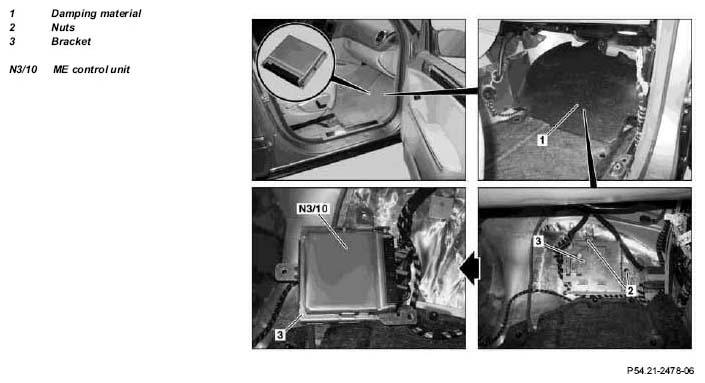

| 3 | Remove vapor barrier (1) | ||
| 4 | Unscrew nuts (2) and remove the bracket (3) together with the ME control unit | ||
| 5 | Separate the electrical connectors from the ME control unit (N3/10) | ||
| 6 | Pull out the ME control unit from the bracket (3) | ||
| 7 | Install in the reverse order | ||
| 8.1 | Code the ME control unit | ||
| STAR DIAGNOSIS diagnostic system | *WH58.30-Z-1048-13A |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnostic system, Compact Passenger Car | 6511 1801 00 |
