Remove/install temperature sensor (Engine 272, 273) - AR15.60-P-3000GZA
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 in MODEL 164
Coolant temperature sensor
| Remove/install | |||
|---|---|---|---|
| Risk of injury
to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

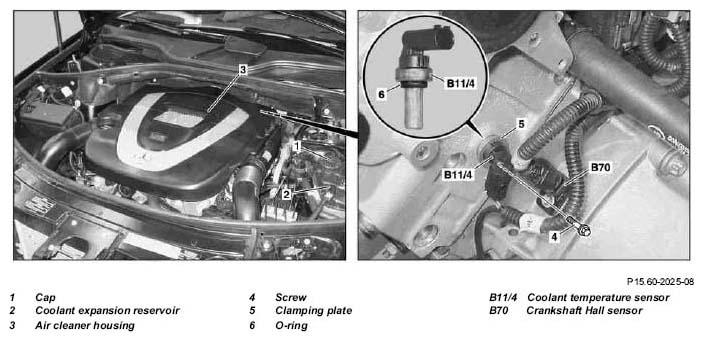

| 1 | Remove air filter housing (3). | AR09.10-P-1150GZA | |
| 2 | Reduce pressure in the engine cooling system, to do this, slowly open the cap (1) at the expansion reservoir (2) for the coolant and close again | ||
| 3 | Disconnect electrical connector on crankshaft Hall sensor (B70) | ||
| 4 | Unlatch the electrical connector at the coolant temperature sensor (B11/4) and disconnect | ||
| 5 | Remove bolt (4) and remove clamping plate (5) | *BA15.60-P-1001-01A | |
| 6 | Fit new O-ring (6) to new coolant temperature sensor (B11/4) | ||
| 7 | Pull coolant temperature sensor (B11/4) out of cylinder head and immediately insert new coolant temperature sensor (B11/4) | ||
| 8 | Install in the reverse order | ||
| 9 | Pour in coolant and bleed cooling system | AR20.00-P-1142GZC | |
| 10 | Connect STAR DIAGNOSIS and read fault memory |
TEMPERATURE SENSOR
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA15.60-P-1001-01A | Bolt, clamping plate for coolant temperature sensor to cylinder head | Nm | 8 | 8 |
