Remove/install camshaft Hall sensor (Engine 156) - AR15.10-P-2000GZS
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 164, 251
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood and raise to vertical position | Model 164 | AR88.40-P-1000GZ |
| Model 251 | AR88.40-P-1000RT | ||
| 2 | Remove left or right suction fan duct | ||
| 3.1 | Remove air pump hose at power steering pump expansion reservoir | ||
| 3.2 | Unhook power steering pump feed line from oil filter housing | ||

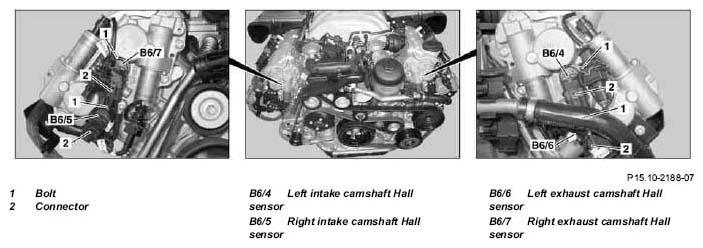

| 4 | Disconnect connector (2) from respective camshaft Hall sensor | ||
| 5 | Undo bolt (1) and remove respective camshaft Hall sensor from front cover on cylinder head | ||
| *BA15.10-P-1001-02C | |||
| 6 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 7 | Conduct engine test run and check the engine for leaks |
KNOCK SENSORS
| Number | Designation | Engine 156 | |
|---|---|---|---|
| BA15.10-P-1001-02C | Bolt, knock sensor to crankcase | Nm | 20 |
