Remove/install alternator belt pulley (Engine 272, 273) - AR15.40-P-5710GZA

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 in MODEL 164, 251

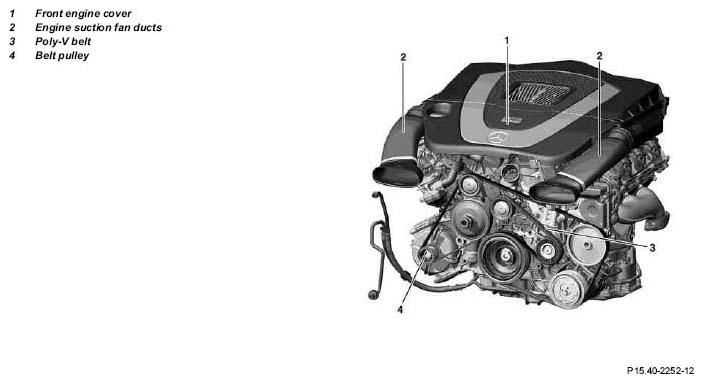

Fig 1: Identifying Alternator Belt Pulley Remove/Install Components
G05259926Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
1 Remove front engine cover (1) IMPORTANT Pull out front engine cover (1) from mounts.
2 Remove poly-V belt (3)   AR13.20-P-0001GZA
3 Dismantle belt pulley (4) using box wrench IMPORTANT At the same time counterhold alternator shaft with a multitooth nut.
IMPORTANT In case of any repairs to alternators after mileage in excess of 100, 000 km, also replace the belt pulley (4).
    TORQUE SPECIFICATION *BA15.40-P-1004-01F
4 Install in the reverse order
ALTERNATOR

Number Designation Engine 272 Engine 273
BA15.40-P-1004-01F Collar nut connecting belt pulley to alternator Nm 80 80
