Component description for the starter relay (Engine 113) - GF15.30-P-2010BK
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.964 in MODEL 164.1

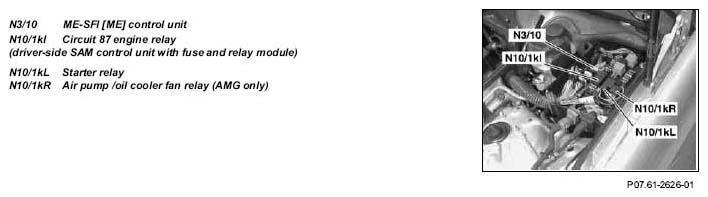

Shows model 219
Location
- Model 219 In the driver-side SAM control unit with fuse and relay module
- Models 164.1, 251 In the engine compartment fuse and relay box.
Function
The starter relay is operated by the ME-SFI control unit through an output stage by means of a GND signal. The voltage supply of the starter relay (coil) is performed via rely circuit 15.
The voltage supply to the starter (circuit 50) is fused.
A suppressor diode in integrated in the starter relay.
Task
To actuate the circuit (terminal 50) to the starter solenoid switch until the engine start speed is reached or the maximum start time has expired.
