Component description for spark plugs (Engine 273) - GF15.10-P-2000V

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 273.923 in MODEL 164

ENGINE 273.943 in MODEL 164

ENGINE 273.963 in MODEL 164, 251

Location

In the cylinder head, each cylinder has a spark plug located in the center between the engine valves.

Task

The compressed fuel-air mixture is combusted by sparks between the electrodes according to the actuation from the ME control unit.

Design

In the manufacturer's specific type symbols, all the spark plug features are assigned (e. g. heat rating, shape of seating, thread, width across flats, electrode material, spark position).

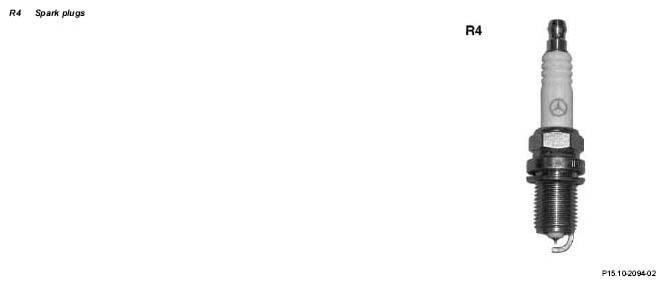

Fig 1: Identifying Spark Plugs - Engine 272.920/940/941

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function

The ignition voltage flows from the ignition lines of the directly plugged in ignition coils to the spark plugs and causes arcing in the air gap between the central electrode and ground electrode.

Spark plug table, see IS, Group 15.
