Component description for spark plugs (Engine 156) - GF15.10-P-2000AMG
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156.980 in MODEL 164, 251

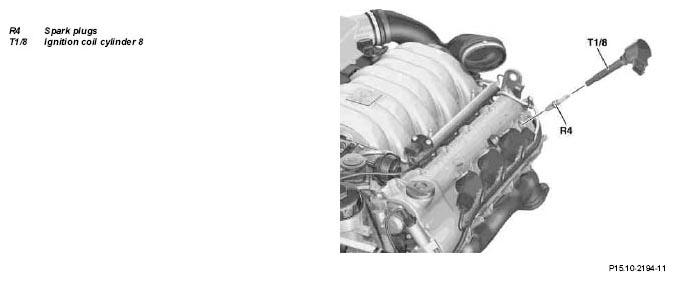

Location
On each cylinder, a spark plug is inserted from the top of the cylinder head to centrally in the combustion chamber.
Task
The spark plugs ignite the suctioned and compressed fuel-air mixture due to arcing between the electrodes.
Function
The ignition voltage flows from the ignition lines of the directly plugged in ignition coils to the spark plugs and causes arcing in the air gap between the central electrode and ground electrode.
All the spark plug characteristics are defined by the type symbols provided by the manufacturer (e.g. heat rating, seat shape, thread, width across flats, electrode material, spark position).
