Replace rear muffler - AR49.10-P-4951GZ (ML500, ML63 AMG)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113, 156 in MODEL 164.1

Shown on model 164.1 with engine 113

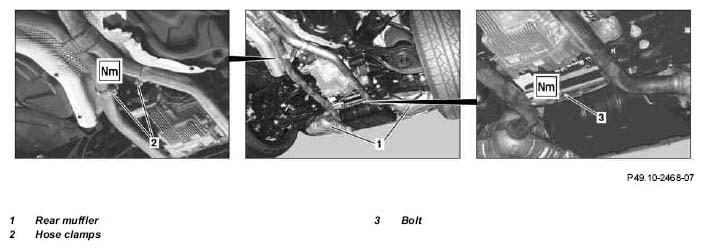

Fig 1: Identifying Rear Muffler Components - Shown On Model 164.1 With Engine 113 (1 Of 2)
G05258960Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 164.1 with engine 113

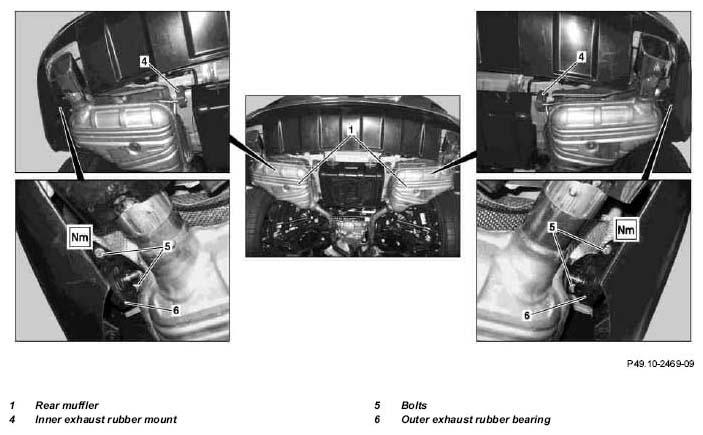

Fig 2: Identifying Rear Muffler Components - Shown On Model 164.1 With Engine 113 (2 Of 2)
G05258961Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  to skin and eyes caused by handling hot or glowing objects. Wear safety gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
1 Remove bolt (3) on rear muffler brace TORQUE SPECIFICATION *BA49.10-P-1006-01S
2 Remove hose clamps (2) TORQUE SPECIFICATION *BA49.10-P-1005-01S
3 Remove bolts (5) on outer exhaust rubber bearing (6) TORQUE SPECIFICATION *BA49.10-P-1008-01S
4 Remove bolts on inner exhaust rubber bearing (4) TORQUE SPECIFICATION *BA49.10-P-1007-01S
5 Remove rear muffler (1).
6 Remove covering on exhaust tailpipe from rear muffler (1) IMPORTANT If present.
INSPECT Checking
7 Check inner exhaust rubber mount (4) and outer exhaust rubber mount (6) IMPORTANT Check for wear, replace if required.
IMPORTANTInstallation:  Coat exhaust rubber mount with lubricant paste for easier installation.
    Lubricating paste *BR00.45-Z-1002-06A
8 Install in the reverse order
INSPECT Checking
9 Check installation position and clearance of exhaust system IMPORTANT The exhaust system must be mounted free of tension, align exhaust system if required.
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.		 AS00.00-Z-0005-01A
10 Test run engine and check exhaust system for leaks
EXHAUST SYSTEM

Number Designation Engine 113.964 in model 164.1 Engine 156.980 in model 164.1
BA49.10-P-1005-01S Bolt, hose clamp of rear muffler to center muffler Nm 35 35
BA49.10-P-1006-01S Self-locking nut, rear muffler reinforcement Nm 20 20
BA49.10-P-1007-01S Bolt connecting exhaust rubber mount bracket (inner) to body Nm 20 20
BA49.10-P-1008-01S Bolt connecting exhaust rubber mount bracket (outer) to bumper bracket Nm 12 12
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-06A Lubricating paste A 000 989 01 60
