Remove / install exhaust system from flange connection - AR49.10-P-7280GZ (ML500, ML63 AMG)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.964, 156.980 in MODEL 164.1
Shown on model 164.1 with engine 113.964

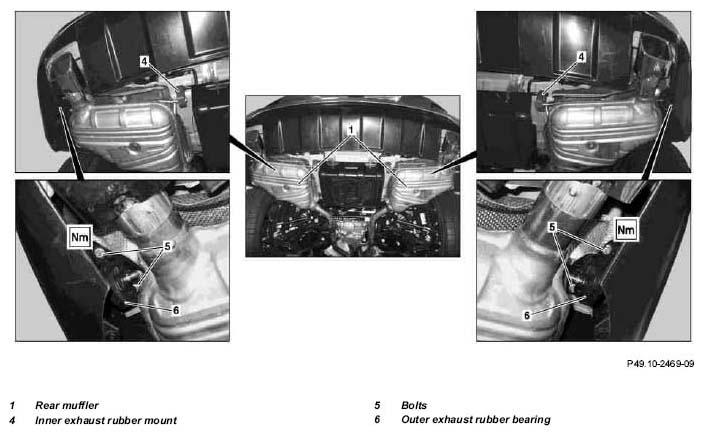

Fig 1: Identifying Exhaust System From Flange Connection Remove/Install Components - Shown On Model 164.1 With Engine 113.964 (1 Of 2)

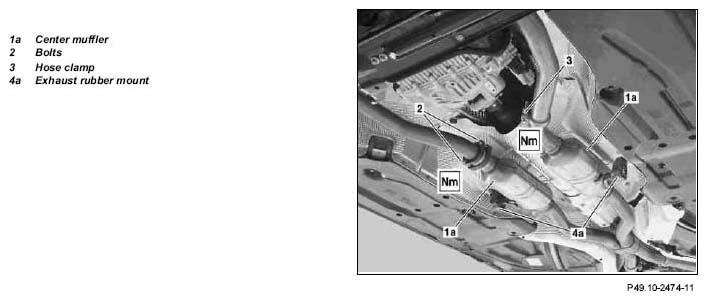

Fig 2: Identifying Exhaust System From Flange Connection Remove/Install Components - Shown On Model 164.1 With Engine 113.964 (2 Of 2)
Shown on model 164.1 with engine 113.964
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Support rear muffler (1) and center muffler (1a) using a transmission jack and transmission platform | ||
| 2 | Dismount center muffler (1a) from right catalytic converter by unscrewing bolts (2) | ||
| *BA49.10-P-1003-01S | |||
| 3 | Detach hose clamp (3) | *BA49.10-P-1005-01S | |
| 4 | Remove exhaust rubber mount (4a) bolts on center muffler from underbody | *BA49.10-P-1008-01S | |
| 5 | Remove bolts (5) from outer exhaust rubber bearing (6) | *BA49.10-P-1008-01S | |
| 6 | Remove bolts from exhaust rubber mount on the inside (4) | *BA49.10-P-1007-01S | |
| 7 | Take off exhaust system | ||
| Checking | |||
| 8 | Check exhaust rubber mount (4a), exhaust rubber mount on the inside (4) and exhaust rubber mount on the outside (6) | ||
| Lubricating paste | *BR00.45-Z-1002-06A | ||
| 9 | Install in the reverse order | ||
| Checking | |||
| 10 | Check installation position and clearance of exhaust system | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Test run engine and check exhaust system for leaks |
EXHAUST SYSTEM
| Number | Designation | Engine 113.964 in model 164.1 | Engine 156.980 in model 164.1 | |
|---|---|---|---|---|
| BA49.10-P-1003-01S | Self-locking nut, rear muffler flange connection to three way catalytic converter | Nm | 20 | 20 |
| BA49.10-P-1005-01S | Bolt, hose clamp of rear muffler to center muffler | Nm | 35 | 35 |
| BA49.10-P-1007-01S | Bolt connecting exhaust rubber mount bracket (inner) to body | Nm | 20 | 20 |
| BA49.10-P-1008-01S | Bolt connecting exhaust rubber mount bracket (outer) to bumper bracket | Nm | 12 | 12 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1002-06A | Lubricating paste | A 000 989 01 60 |
