Component description for the exhaust system - GF49.00-P-3010GZ
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164.1 /8 except CODE (474) Particulate filter

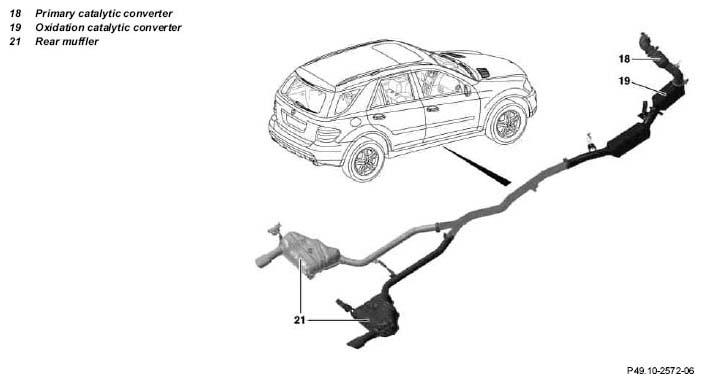

Fig 1: Identifying Exhaust System Components - Engine 642 In Model 164.1 /8 Except Code (474) Particulate Filter
Task
- Conducting exhaust gases with a low backpressure to the rear of the vehicle
- Muffling the noises of the exhaust gases
- Exhaust cleaning through catalytic converters
Body
The exhaust system consists of:
- Primary catalytic converter
- Oxidation catalytic converter
- Rear muffler
Function
The exhaust gases are guided, cleaned and fed through the through the primary catalytic converter and oxidation catalytic converter and then through the rear muffler for sound dampening.
