Catalytic converter efficiency monitoring function - GF49.10-P-3033AMG

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156.980 in MODEL 164, 251

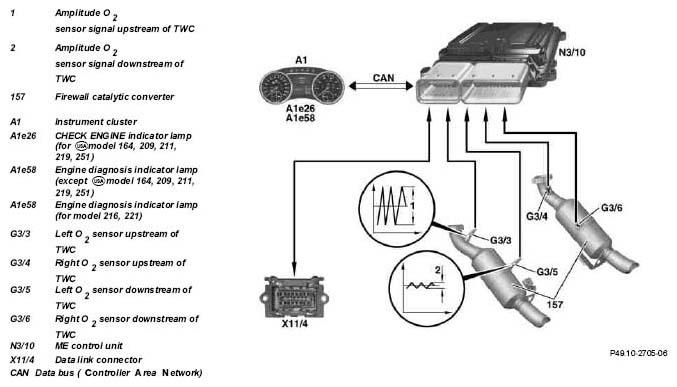

Fig 1: Identifying Catalytic Converter Efficiency Monitoring Function Diagram - Engine 156.980
G04958830Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

By law, HC emissions must not go above certain limits. The task of monitoring catalytic converter effectiveness to obtain insights from the oxygen storage capacity of catalytic converters about their aging and therefore their HC conversion. The oxygen stored during the "lean phase" is then reduced totally or partially during the "rich phase". Aging leads to reduction in the storage capacity of catalytic converters whereby the HC conversion is removed.

When the firewall catalytic converter is operationally warm and lambda control enabled, the amplitude sizes of the O2 sensor signals downstream and upstream of the firewall catalytic converters are compared. Changes in the oxygen content downstream of the firewall catalytic converters are almost completely dampened by the high oxygen storage capacity of the firewall catalytic converters.

This results in the O2 sensor signal downstream of the firewall catalytic converters being virtually constant with a small amplitude. If the firewall catalytic converter is no longer operational, the O2 sensor signal upstream and downstream of the firewall catalytic converters will be equal.

Wideband oxygen sensors are installed upstream of the firewall catalytic converter which can exactly measure the mixture composition. Downstream of the firewall catalytic converters or after the first catalytic converter inserts (for model 164, 216, 221, 251) there are voltage-jump oxygen sensors with which at 450 mV a sensor voltage λ=1 is recognized.

During the first stage, the oxygen stored when the mixture is rich (λ =0.95) is reduced until the sensor voltages downstream of the TWC are >650 mV.

In the next operation step, a lean mixture (λ=1.05) is set and the system waits until sensor voltages downstream of the TWC are <200 mV.

If the times so measured are under a stored characteristic the oxygen storage capacity is inadequate and the firewall catalytic converters must be replaced.

If a fault is detected, the engine diagnosis indicator lamp or CHECK-ENGINE in the instrument cluster lights up. The stored faults can be read out and deleted with STAR DIAGNOSIS.

Component description for O2 sensors G3/3, G3/4 O2 sensors upstream of TWC GF07.04-P-6100AMG
G3/5, G3/6 O2 sensors downstream of TWC GF07.04-P-6100AMH
Component description for the ME-SFI [ME] control unit N3/10 GF07.61-P-6000AMG
Component description for the three-way catalytic converter 157, 158 GF49.10-P-2010AMG
Component description for the engine diagnosis indicator lamp A1e58 for model 164, 209, 211, 216, 219, 221, 251 and model 216, 221 with code 494, USA version GF54.30-P-5010AMG
Component description for the "CHECK ENGINE" indicator lamp A1e26 except model 216, 221 for code 494
USA version
GF54.30-P-5011AMG
