Removing/installing accelerator pedal - AR30.12-P-1321GZ

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 164

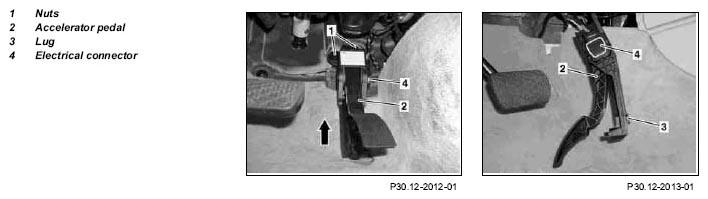

Fig 1: Identifying Accelerator Pedal Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Switch off ignition and remove transmitter key from EIS [EZS] control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until the ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2	Remove cover below instrument panel on driver's side		AR68.10-P-1500GZ
3	Unscrew nuts (1)
4	Remove accelerator pedal (2)	Pull out the upper part of the accelerator pedal (2) slightly and then push upwards to release the lug (3).
5	Disconnect electrical connector (4)
6	Install in reverse order
