Component description for the CC [TPM] switch - GF30.20-P-2100GZ

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113, 156, 272, 629, 642 in MODEL 164.1

ENGINE 273, 629, 642 in MODEL 164.8

ENGINE 642.970 in MODEL 463.303 /340 /341

Shown on model 164 except code (494) USA version

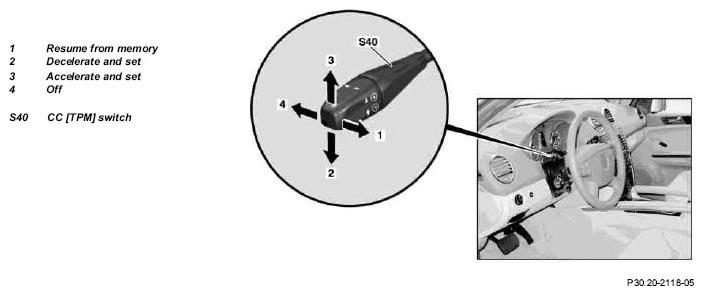

Fig 1: Function - CC [TPM] Switch (Shown On Model 164 Except Code (494) USA Version)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 164 with code (494) USA version

Fig 2: Function - CC [TPM] Switch (Shown On Model 164 With Code (494) USA Version)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Task

The Cruise control switch detects the CC [TPM] switch functions operated by the driver, the Variable Speed Limiter (except code (494) USA version) and Downhill Speed Regulation.

Function

When the CC [TPM] switch is operated, two switching contacts are always activated simultaneously. The actual input takes place by closing the switching contacts (storing the target speed). The control contact must close simultaneously so that the input is accepted. Signals from the Cruise control switch are read in by the steering column module (N80) and transmitted for evaluation via the Controller Area Network (data bus/CAN bus) (CAN) to the ESP control unit (N47-5), for model 164, or to the ESP and BAS control unit (N47-5), for model 463.
