Screw diagram for timing case cover - AR01.40-P-8000-01B

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

Assignment of bolts for timing case cover

IMPORTANT Apply sealant at the bolts marked (arrows).

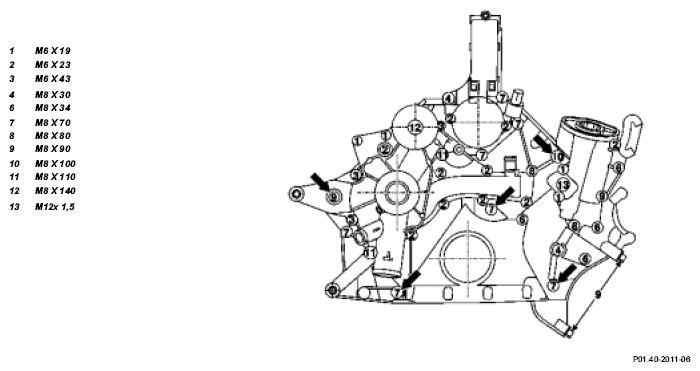

Fig 1: Identifying Timing Case Cover Bolts & Bolts Needing Sealant
G04605621Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
