Bolt plan for oil pan - AR01.45-P-7500-06SX

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

Oil pan with front sump

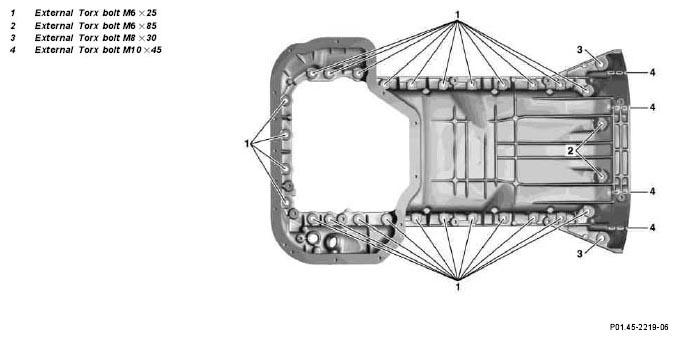

Fig 1: Bolt Plan For Oil Pan - Front Sump
G04958189Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Oil pan with middle sump

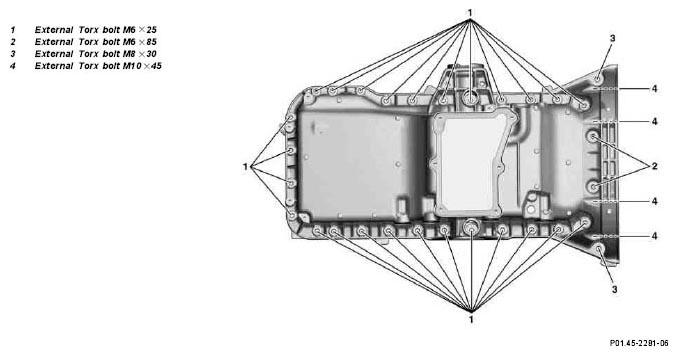

Fig 2: Bolt Plan For Oil Pan - Middle Sump
G04958190Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Oil pan with rear sump

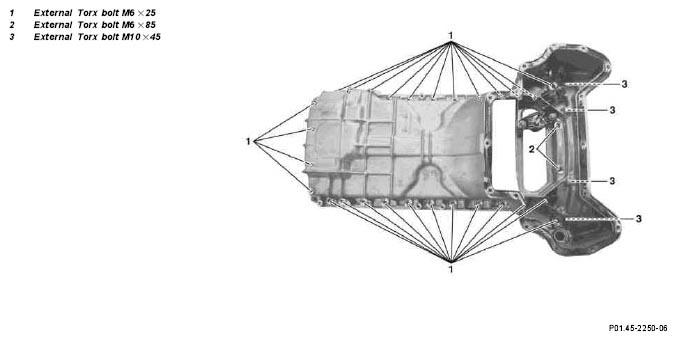

Fig 3: Bolt Plan For Oil Pan - Rear Sump
G04958191Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
