Oil pan bolt diagram - AR01.45-P-7500-06GZ

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

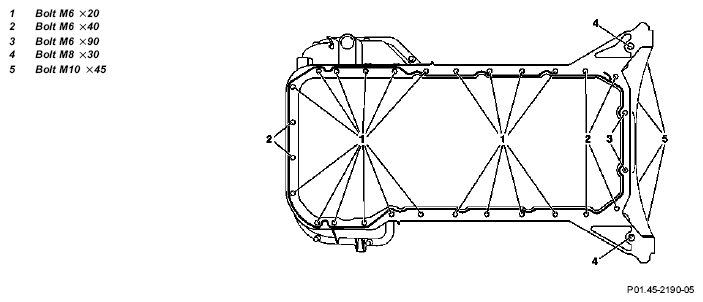

Fig 1: Oil Pan Bolt Diagram
G05257269Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
