Tightening instructions for cylinder head bolts - AR01.30-P-5800-07AMG
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
CYLINDER HEAD
| Number | Designation | Engine 156 | |||
|---|---|---|---|---|---|
| BA01.30-P-1002-01U | Bolt, cylinder head to crankcase | Stage 1 | Nm | 10 | |
| Stage 2 | Nm | 50 | |||
| Stage 3 | ∠ ° | 90 | |||
| Stage 4 | ∠ ° | 90 | |||
| Stage 5 | ∠ ° | 90 | |||
| BA01.30-P-1003-01U | Bolt, cylinder head to crankcase | M8 | Nm | 20 | |
| BA01.30-P-1008-01U | Cylinder head on timing case chain box on the outside | M8 | Nm | 20 | |
| BA01.30-P-1009-01U | Cylinder head on timing case chain box on the inside | M8 | Nm | 20 | |
Tightening of the cylinder head bolts must take place according to the numerical sequence given in the figure. Loosening of bolts takes place in reverse order.
- Tighten cylinder head bolts (1 to 10) to stage 1.
- Tighten cylinder head bolts (1 to 10) to stage 2.
- Tighten cylinder head bolts (1 to 10) to stage 3 (follow-up tightening).
- Tighten cylinder head bolts (1 to 10) to stage 4.
- Tighten cylinder head bolts (1 to 10) to stage 5.
- Tighten bolts (11).

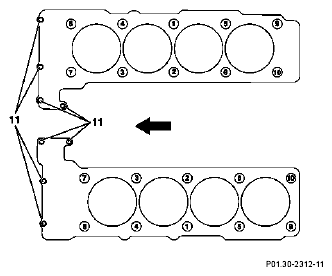

Tightening scheme Schematic diagram of cylinder head gasket
