Pull out guide rail pins at cylinder head - AR01.30-P-5800-04AMG

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Impact Extractor (116 589 20 33 00)

G04958171

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Threaded Pin (116 589 01 34 00)

G04958172

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Left-hand cylinder head

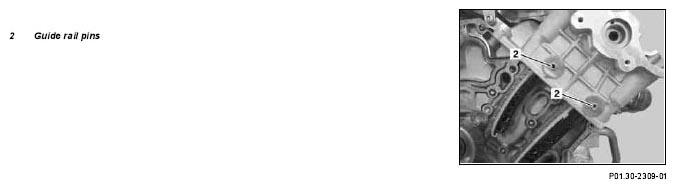

Fig 3: Identifying Guide Rail Pins - Left Hand Cylinder Head

G04958173

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Right-hand cylinder head

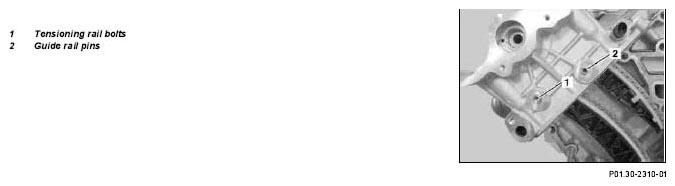

Fig 4: Identifying Guide Rail Pins And Tensioning Rail Bolts - Right Hand Cylinder Head

G04958174

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Guide rail pins (2) are removed in the same way as tensioning rail bolts (1).

Only pull out tensioning rail bolts (1) or guide rail pins (2) with impact extractor in order to avoid damaging contact surface of front cover.

Screw threaded insert into den tensioning rail bolts (1) or guide rail pins (2) and pull out corresponding bolts (1) with impact extractor.
