Slackening diagram for cylinder head bolts - AR01.30-P-5800-09B

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Screwdriver Insert (000 589 03 10 00)
G04605604Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 2: Identifying Screwdriver Insert (000 589 04 10 00)
G04605605Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 112

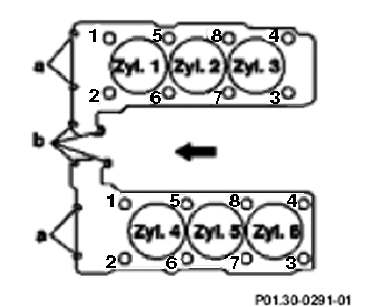

Fig 3: Identifying Loosening Sequence Of Cylinder Head Bolts - Engine 112
G04605606Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. Unscrew bolts (a, b).

    Engine 113

    Fig 4: Identifying Loosening Sequence Of Cylinder Head Bolts - Engine 113
    G04605607Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  2. Loosen cylinder head bolts (1 to 8 or 10) as per the numerical sequence and remove.
