Checking cylinder head bolts - AR01.30-P-5800-03VA (ML350, ML550, GL450, GL550)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
CYLINDER HEAD/CYLINDER HEAD BOLTS
| Number | Designation | Engine 272 | Engine 273 | ||
|---|---|---|---|---|---|
| BE01.30-P-1001-04B | Cylinder head bolt | Thread diameter | M | 11 | 11 |
| Length (L) when new | mm | 170 | 170 | ||
| Length (L) | mm | 172 | 172 | ||
| See picture in | - | - | |||

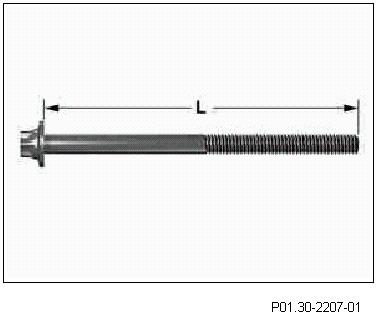

- Measure length (L).
If the length (L) is greater than the maximum permissible dimension, use new cylinder head bolts.
