Notes on sealant path for oil pan - AH01.45-P-0001-01SY

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

Engine 273

Application of sealant to oil pan bottom section for engine with front sump

The line (1)identifies the sealant run.

The sealing surface must be cleaned.

The sealant must only be applied to the specified surface in the form of a bead and a height and width of 2.0 mm (±0.5 mm).

The sealant must be applied within 10 min. The sealant bead must not be spread. Only sealant listed in the Repair Products may be used.

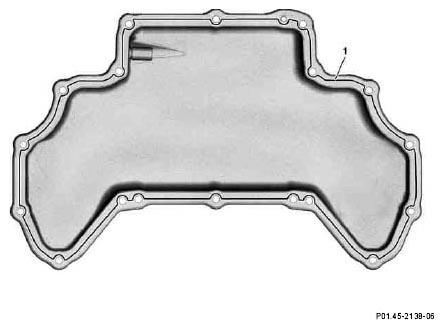

Fig 1: Identifying Sealant Application Bottom Section Area On Oil Pan - Front Sump

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Application of sealant to oil pan bottom section for engine with middle sump

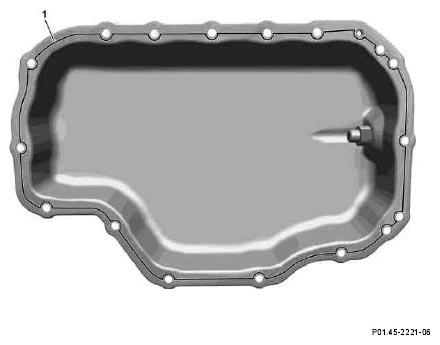

Fig 2: Identifying Sealant Application Bottom Section Area On Oil Pan - Middle Sump

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Application of sealant to oil pan bottom section for engine with rear sump

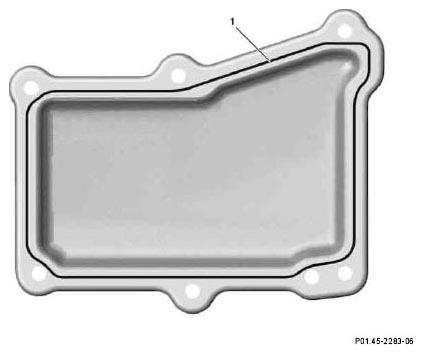

Fig 3: Identifying Sealant Application Bottom Section Area On Oil Pan - Rear Sump

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
