Notes on application of sealant to oil pan - AH01.45-P-0001-01GZA (ML350)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
Engine 272
MODIFICATION NOTES
| 3.3.06 |
Sealant path for oil pan top section adapted to specifications of the Development Department |
Engine 272 |
|

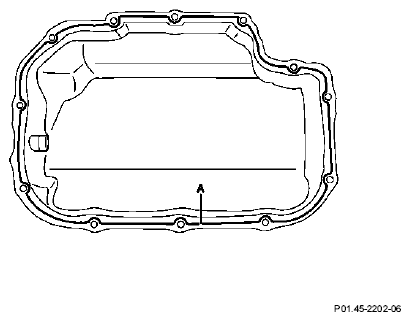

Sealant application on oil pan bottom section
The line (A) identifies the sealant run.
The sealing surface must be cleaned.
The sealant must only be applied to the specified surface in the form of a bead and a height and width of 2.0 mm (± 0.5 mm).
The sealant must be applied within 10 min.
The sealant bead must not be spread. Only the sealant listed in the Repair Products may be used.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

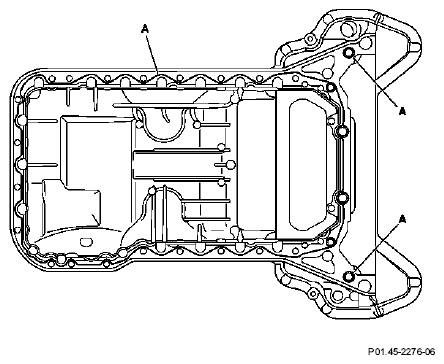

Application of sealant to oil pan top section
The lines (A) identify application of the sealant.
The sealing surface must be cleaned. The sealant must only be applied to the specified surface in the form of a bead and a height and width of 2.0 mm (± 0.5 mm).
The sealant must be applied within 10 min.
The sealant bead must not be spread. Only the sealant listed in the Repair Products may be used.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
