Notes on application of sealant to cylinder head gasket - AH01.30-P-1000-04V
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
Engine 113
Engine 113

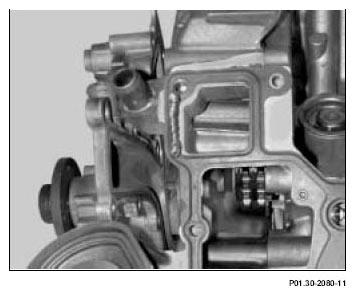

Before installing the left cylinder head, it is necessary to apply sealant to the cylinder head gasket in the area of the timing case cover because of porous areas in the left cylinder head.
Repair note
The sealant must be applied only in the manner shown, with a bead of 2.0 mm ± 0.5mm.
The sealant must be used within 10 min.
The silicone bead must not be spread.
