Component description for the fuel tank - GF47.10-P-2000GZ

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 164.1 /8 with ENGINE 642

MODEL 463 with ENGINE 642

Shown on MODEL 164

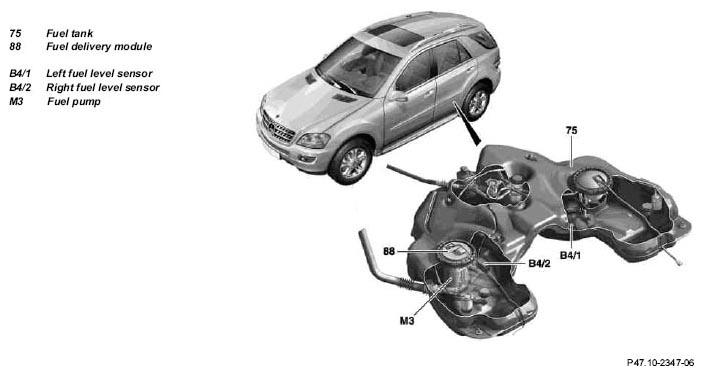

Fig 1: Identifying Fuel Tank Components - Shown On Model 164

G05258450

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Illustrated on model 463

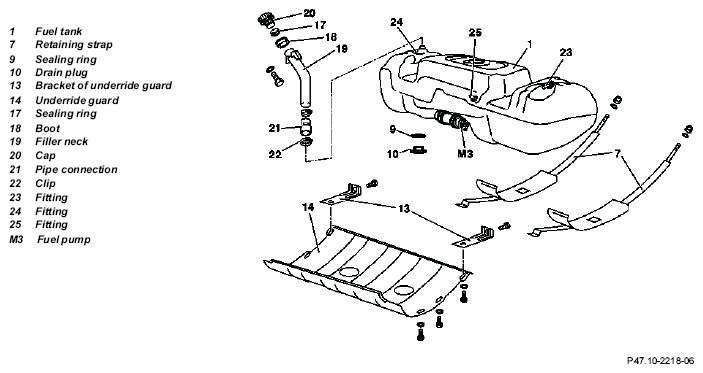

Fig 2: Identifying Fuel Tank Components - Model 463

G05258451

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Fuel Tank Vent Hose On Left Side

G05258452

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Fuel Tank Maintenance Window, Venting Hose, Electrical Hose And Fuel Level Sensor

G05258453

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Vent Hose On Right Side

G05258454

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Illustrated on model 463

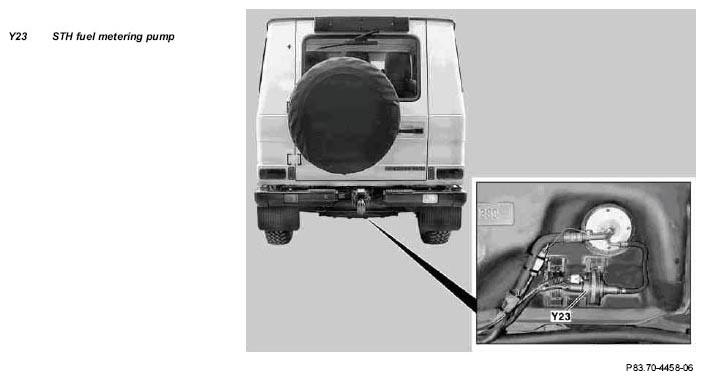

Fig 6: Identifying STH Fuel Metering Pump

G05258455

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Position model 164

The fuel tank is attached to the frame floor ahead of the rear axle.

Position model 463

The fuel tank is attached to the frame floor behind the rear axle.

Design model 164

The fuel tank consists of 2-layered plastic. It is split into 2 chambers by the U-form cutout. The chambers are connected with each other.

Design model 463

The fuel tank consists of 2-layered plastic. The fuel tank consists of one chamber.

Function model 164

The swirl pot is located in the right fuel tank chamber in the fuel tank. It ensures that there is a sufficient and free of bubbles fuel supply to the engine for a low fuel level and during long cornering. The swirl pot is filled with fuel over the suction jet pump on the right and left.

The fuel pump is located in the swirl pot which delivers fuel over the fuel strainer out of the swirl pot to the fuel main filter.

The swirl pot with fuel pump and suction jet pump on the right is called the fuel feed module.

Function model 463

The fuel pump and the STH fuel metering pump are attached at the bottom on the outside of the tank.

The fuel level sensor is located at the top in the tank.

The swirl pot is located in the fuel tank. It ensures that there is a sufficient and free of bubbles fuel supply to the engine for a low fuel level and during long cornering.

The fuel is pumped out of the fuel tank to the fuel main filter via the connection fitting at the bottom on the tank.
