Remove/install rear engine mount - AR22.10-P-1160GZS (ML 63AMG)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156 in MODEL 164, 251

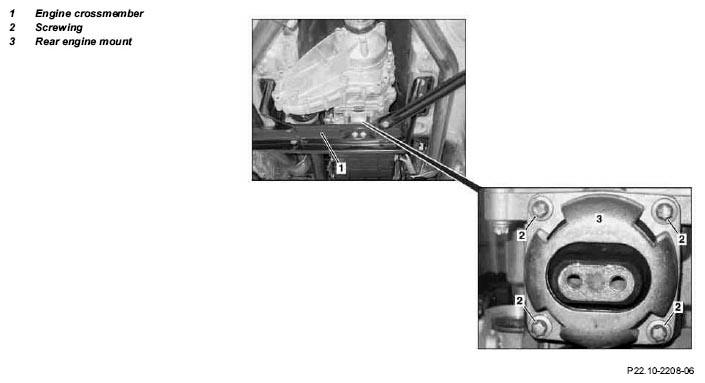

Fig 1: Identifying Engine Crossmember And Rear Engine Mount

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

18.4.06

Notes on screw connections with self-tapping screws, added

Replaces notes on self-locking nuts and bolts

	Remove/install
	Risk of death caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
1	Raise vehicle with lifting platform	Model 164	AR00.60-P-1000GZ
		Model 251	AR00.60-P-1000RT
2	Remove engine crossmember (1)	The rear engine mount remains on the transmission. All bolts must be replaced. Transmission platform, refer to GOTIS http://gotis.aftersales.daimlerchrysler.com Transmission jack, refer to GOTIS http://gotis.aftersales.daimlerchrysler.com	AR22.10-P-1170GZS
3	Unscrew bolts (2) from rear engine mount (3).		*BA22.10-P-1003-03F
			*BA22.10-P-1004-03F
4	Remove rear engine mount (3)
5	Install in the reverse order

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		Model 251
BA22.10-P-1003-03F	Bolt, rear engine mount to transmission	Nm	20
BA22.10-P-1004-03F	Bolt, rear engine mount to rear engine crossmember	Nm	58
