Bolt diagram for coolant pump - AR20.10-P-1271-03VA
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 272 | Engine 273 | |||
|---|---|---|---|---|---|---|
| BA20.10-P-1001-01U | Self-tapping bolt connecting coolant pump to timing case cover | M7 | Stage 1 | Nm | 10 | 10 |
| Stage 2 | Nm | 25 | 25 | |||
| BA20.10-P-1002-01U | Bolt, coolant pump to crankcase | M8 | Stage 1 | Nm | 5 | 5 |
| Stage 2 | Nm | 20 | 20 | |||

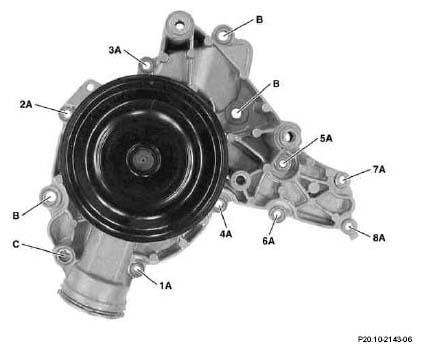

Bolt assignments for coolant pump
Bolts A: Coolant pump on timing case cover.
Bolts B and C: Coolant pump on crankcase.
The tightening sequence given in the following table must be followed to ensure that there are no leaks in the coolant pump.
TIGHTENING SEQUENCE AND BOLT LENGTH
| Tightening sequence | Bolts |
|---|---|
| 1 | 1A to 8A (M7_28), tighten in numerically ascending order |
| 2 | B (M8x75) |
| 3 | C (M8x110) |
