Bolt diagram of coolant pump - AR20.10-P-1271-03GZ

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

COOLANT PUMP, COOLANT THERMOSTAT

Number	Designation				Engine 113.964/971
BA20.10-P-1001-01C	Self-tapping bolt of coolant pump to timing case	Thread not pretapped	M6	Nm	14
		Thread not pretapped	M8	Nm	35
		Thread pretapped	M6	Nm	10
		Thread pretapped	M8	Nm	25

Bolt assignment of coolant pump

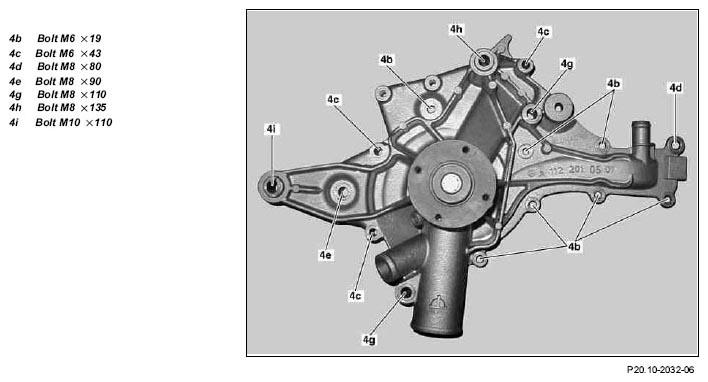

Fig 1: Identifying Coolant Pump Bolts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
