Remove/install air pump switchover valve - AR14.30-P-7255GZA (ML350, ML550, GL450, GL550)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 in MODEL 164, 251

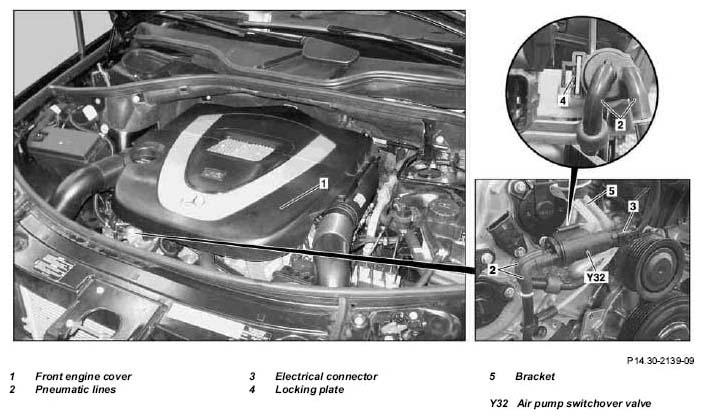

Fig 1: Identifying Air Pump Switchover Valve Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove front engine cover (1)
2	Disconnect pneumatic lines (2) at air pump switchover valve (Y32)	Never use pointed or sharp tools to remove pneumatic lines (2), otherwise these may be damaged. Check pneumatic lines (2) for wear and damage; replace them if required.
3	Disconnect electrical connector (3) at air pump switchover valve (Y32)
4	Lift off locking tab (4) and pull off air pump switchover valve (Y32) from bracket (5)
5	Install in the reverse order
6	Connect STAR DIAGNOSIS and read fault memory	Stored faults which may be caused by disconnecting cables or by simulation during test operations, must be erased in the fault memory after completing the work.	AD00.00-P-2000-04A
