Remove/install air pump - AR14.30-P-7251GZA (ML350, ML550, GL450, GL550)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 in MODEL 164, 251

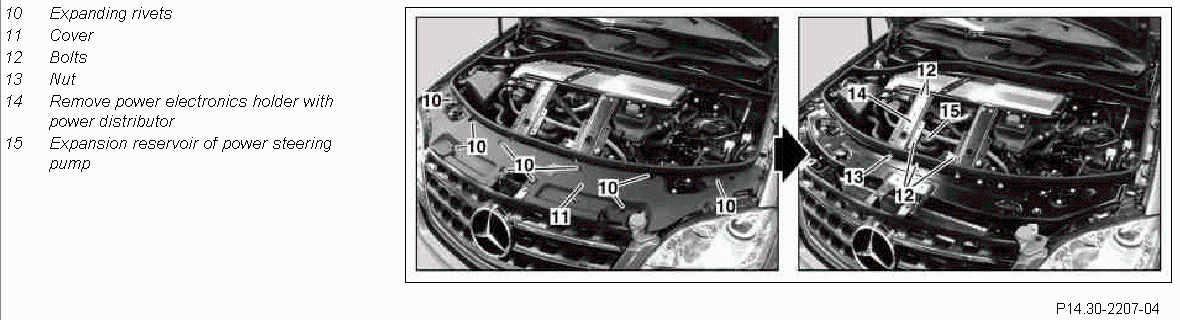

Fig 1: Removing/Installing Air Pump (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

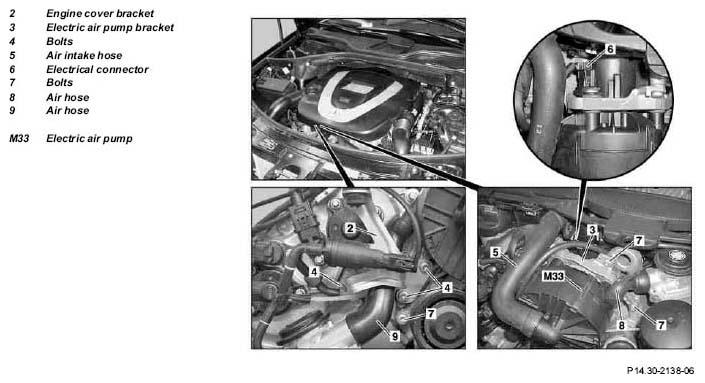

Fig 2: Removing/Installing Air Pump (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Switch off ignition and remove transmitter key from the EIS [EZS] control unit	On vehicles with code (889) Keyless Go: Press keyless go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2	Remove front engine cover
3	Remove air intake hose (5) on electric air pump (M33)
4	Disconnect electrical connector (6) on electric air pump (M33)
5	Detach bracket for electric air pump (3) from cylinder head and timing case cover by removing bolts (7)		*BA14.30-P-1002-01D
6	Remove bracket for engine cover (2) from front cover on cylinder head and from bracket for electric air pump (3) by removing bolts (4)		*BA14.30-P-1001-01D
7	Detach air hoses (8, 9) from electric air pump (M33)
8	Remove the electrical air pump (M33) with the bracket of the electrical air pump (3)
9	Remove electric air pump (M33) from bracket for electric air pump (3)	When replacing the electric air pump (M33). Installation: Check rubber bearing bushings on the bracket for electric air pump (3) for damage and wear; replace if necessary.
			*BA14.30-P-1003-01D
10	Install in the reverse order
11	Connect STAR DIAGNOSIS and read fault memory	Stored faults which may be caused by disconnecting cables or by simulation during test operations, must be erased in the fault memory after completing the work.	AD00.00-P-2000-04A

AIR PUMP

Number	Designation		Engine 272, 273
BA14.30-P-1001-01D	Bracket bolt, front engine cover to electric air pump bracket or cylinder head	Nm	14
BA14.30-P-1002-01D	Bolt, bracket of electric air pump to cylinder head or timing case cover	Nm	14
BA14.30-P-1003-01D	Bolt connecting electric air pump to bracket	Nm	8
