Component description for the exhaust gas recirculation cooler - GF14.20-P-2020P
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164.1 /8, 203.0 /2, 209.3 /4, 211.0 /2 /6, 219.3, 221.0 /1, 251.0 /1
ENGINE 642 in MODEL 461.3, 463.3
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

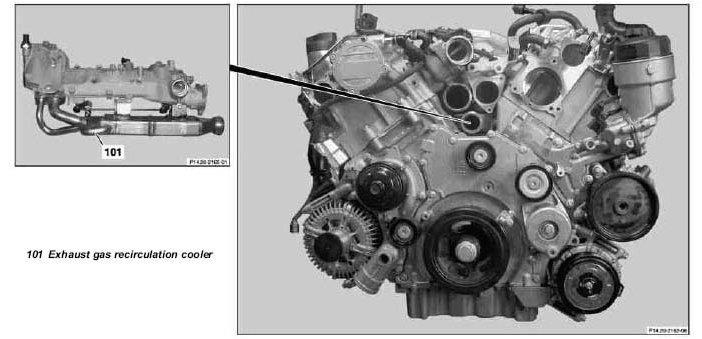

Location
The exhaust gas recirculation cooler is located below between the two cylinder heads.
Task
The exhaust gas recirculation cooler lowers the temperature of the exhaust gases passed over the left exhaust gas recirculation positioner (Y27/9) (except model 461) or the exhaust gas recirculation positioner (Y27/9) (model 461). Temperature lowering produces a greater density of exhaust gases. This increases the exhaust gas recirculation rate and the nitrogen oxide (NOX
) emission is lowered.
In model 211.022 with OM 642.920 and code (494) USA version, in model 211.022/222 with OM 642.920 and code (498) Japan version and in model 211.024 with OM 642.920, the exhaust gas recirculation cooler has 12 cooling ducts instead of the nine cooling ducts so far. Likewise, on model 164.1/8 and on model 251.0/1 with code (494) USA version, the exhaust gas recirculation cooler has 12 cooling ducts instead of the nine cooling ducts so far.
