Air shutoff valve with integral check valve, component description - GF14.30-P-2100AMG

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156.980 in MODEL 164, 251

ENGINE 156.982 in MODEL 209

ENGINE 156.983 in MODEL 211, 219

ENGINE 156.984 in MODEL 216, 221

Location

One air shutoff valve is located at the front of the engine for each cylinder head.

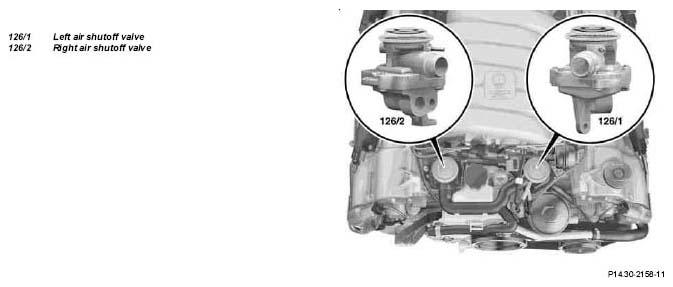

Fig 1: Identifying Left And Right Air Shutoff Valve

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Task

The air shutoff valves open the route for the injected air into the outlet ducts of the cylinder heads.

When the electrical air pump is switched off (M33), the air shutoff valves prevent the induction of air into the outlet ducts, as a result of the flow of the exhaust gases.

Function

The air shutoff valves are opened via the air pump switchover valve (Y32) by a vacuum or closed through ventilation. The injected air to the electric air pump can thus flow through the opened air shutoff valves.

When the electric air pump is switched off, the check valve prevents the admission of exhaust gas to the vacuum diaphragm and thus protects it from dirt and thermal destruction.

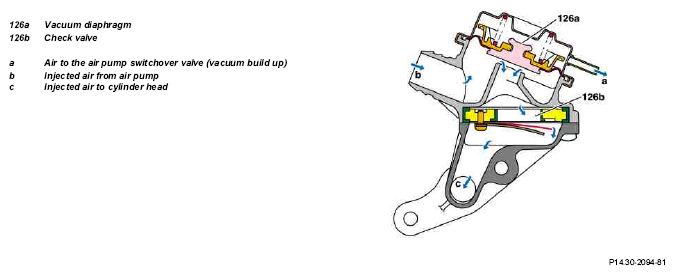

Fig 2: Aspirator Shutoff Valve Function Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
